Doordrishti

CLM-CVDR05: Dual-Mode Radar + Vision Monitoring

Doordrishti (CLM-CVDR05) is our flagship integrated system that provides true "Visual Ground Truth" through sensor fusion. It combines millimetre-accurate radar water level sensing, Doppler radar flow velocity tracking, and AI-enabled optical monitoring in a single, solar-powered autonomous unit.

Inquire Now
Power
Solar
Comms
LTE/LoRa
Build
IP67

How It Works

Visual walkthrough of the system and its integration

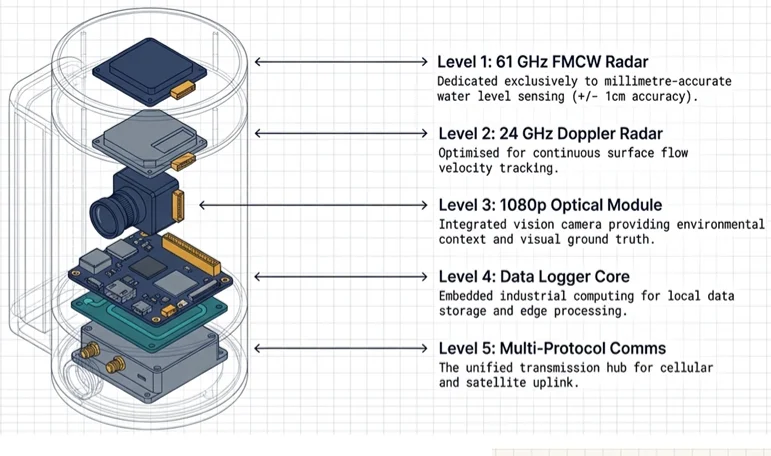

How it works 1

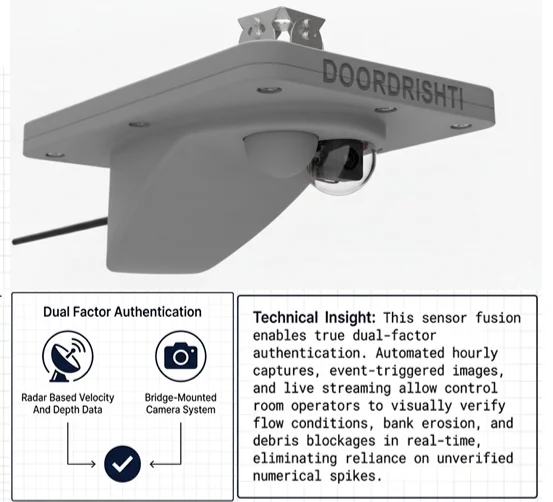

How it works 2

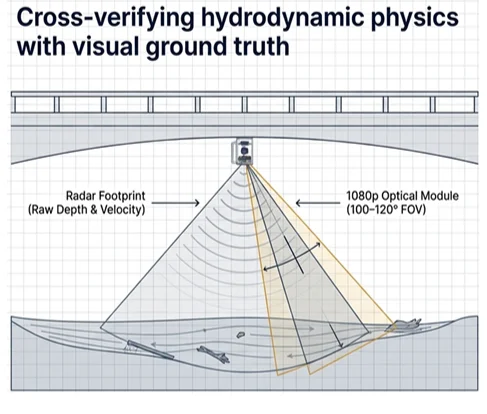

How it works 3
How it works 4

Engineered for Mission Critical Reliability

61 GHz FMCW Radar for millimetre-accurate water level sensing (+/- 1cm accuracy)

Technical Specifications

Detailed breakdown of Doordrishti's capabilities

Water Level Range0 – 30 metres
Water Level Accuracy±1 mm
Velocity Range0.02 – 20 m/s
Velocity Accuracy±1-2% of measured value
CameraFull HD (1080p) AI-enabled
Field of View100-120° horizontal
Storage64 GB Internal (Expandable via USB/SSD)
Communication4G LTE / LoRa / VSAT / MQTT
EnvironmentalIP67 Weatherproof, Aluminum Body
Operating Temp-20°C to +70°C

System Overview

  • Millimetre-accurate water level sensing
  • Continuous surface flow velocity tracking
  • AI-enabled visual monitoring & ground truth
  • On-device edge processing & data logging
  • Multi-network failover capabilities

Comprehensive Component Specifications

Water Level Profile

Technology61 GHz FMCW Radar (Non-contact)
Range0 – 30 metres
Accuracy±1 mm
Resolution≤ 1 mm
SamplingConfigurable up to 1 sample/sec

Surface Velocity Profile

Technology24 GHz Doppler Radar
Beam Aperture< 12° x 25°
Range0.02 – 20 m/s (up to 20m height)
Accuracy±1-2% of measured value
Resolution≤ 0.01 m/s

Optical & Processing

Camera Resolution1080p Full HD Industrial
Field of View100-120° horizontal wide-angle
Processing PowerARM Cortex-M7 embedded 64-bit unit
Data Vault64 GB onboard storage (USB/SSD support)

Detailed System Requirements

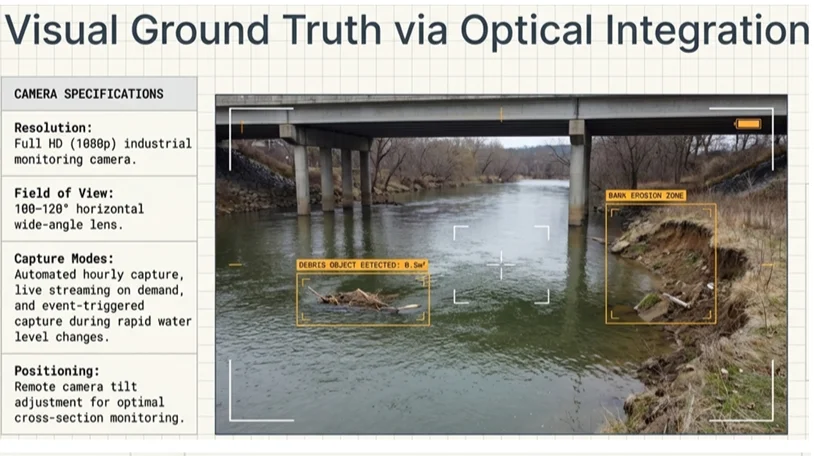

Visual Ground Truth via Optical Integration

Technical Insight: This sensor fusion enables true dual-factor authentication. Automated hourly captures, event-triggered images, and live streaming allow control room operators to visually verify flow conditions, bank erosion, and debris blockages in real-time, eliminating reliance on unverified numerical spikes.

  • Automated hourly capture
  • Live streaming on demand
  • Event-triggered capture during rapid water level changes
  • Remote camera tilt adjustment for optimal monitoring
